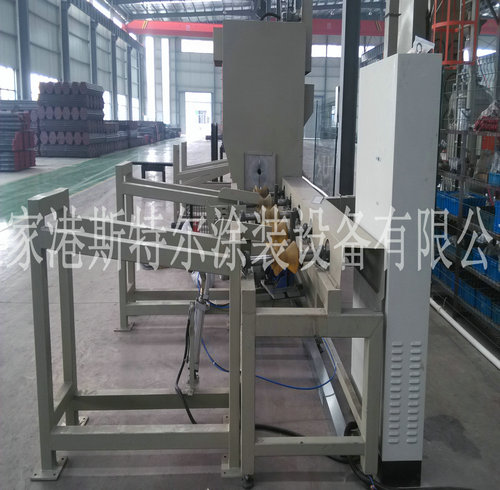

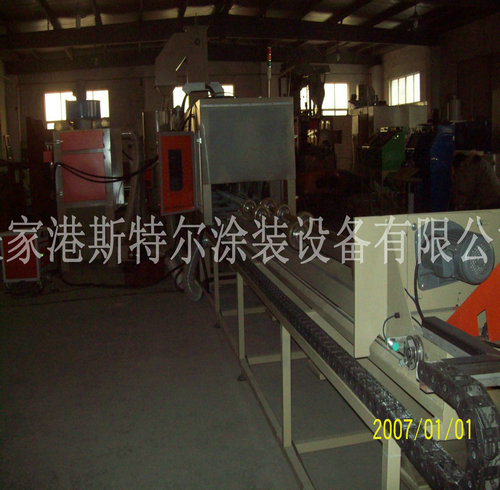

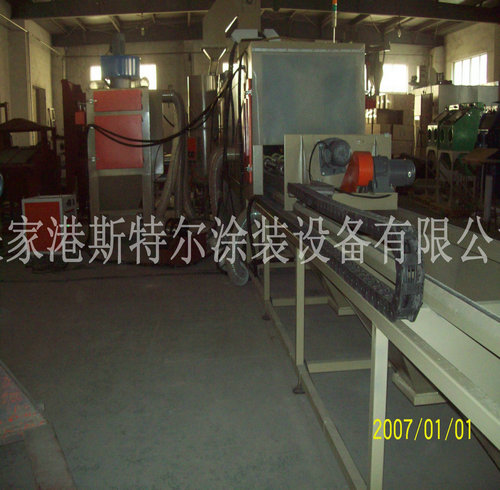

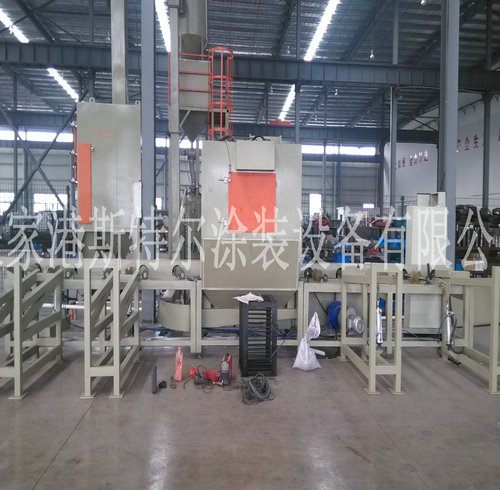

管道外壁自動噴砂機
◆采用條件 Applicable scope
管類(lei)軸類(lei)零(ling)件,如(ru):鍍(du)鋅鋼(gang)管、園鋼(gang)、擠出機螺桿、擠出機螺桿、大中(zhong)型圓錐(zhui)形體、圓錐(zhui)形類(lei)、圓錐(zhui)形體型鋁件;所(suo)采用雙槍(qiang)(可按要多槍(qiang))及漩風(feng)式煙氣凈化器和光電(dian)技術感應式技能,加強了(le)(le)生(sheng)育有效(xiao)率(lv)及在很大程(cheng)度上的才能減少(shao)了(le)(le)修補(bu)率(lv)。 (此型號規格需(xu)規定)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆包括工藝規格 Main technical parameters
|
機械主要參數 Model |
STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
|
的工作艙尺寸大小 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
|
服務器的尺寸 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
|
縮短廢氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
外接電源 Power |
220v 50Hz |
220v 50Hz |
|
變頻器交流接觸器變頻調速器 Governor |
250W×2 |
250W×2 |
|
隔離器主軸電機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
|
分開器功率 Air separator |
35m3/min |
35m3/min |
|
電腦重量體積 Machine weight |
900kg |
900kg |
